Understanding Modular apparatus
Modular apparatus are essential components in electrical systems. These devices protect circuits and equipment from overloads and short circuits. They come in various sizes and types, each serving a specific purpose. Modular apparatus https://onninen.pl/en/products/Electrical-apparatus/Modular-apparatus are designed to be easily installed and replaced. Their compact size allows for efficient use of space in distribution boards.
One key advantage of modular apparatus is their versatility. They can be used in residential, commercial, and industrial applications. These devices are typically rated for voltages up to 415V and currents up to 125A. Modular apparatus often feature clear status indicators, making it easy to identify tripped devices.
Regular maintenance of modular apparatus is crucial for ensuring their proper function. It’s recommended to test these devices every six months. Dust and debris can accumulate over time, potentially affecting performance. Cleaning modular apparatus with a dry cloth can help maintain their efficiency and longevity.

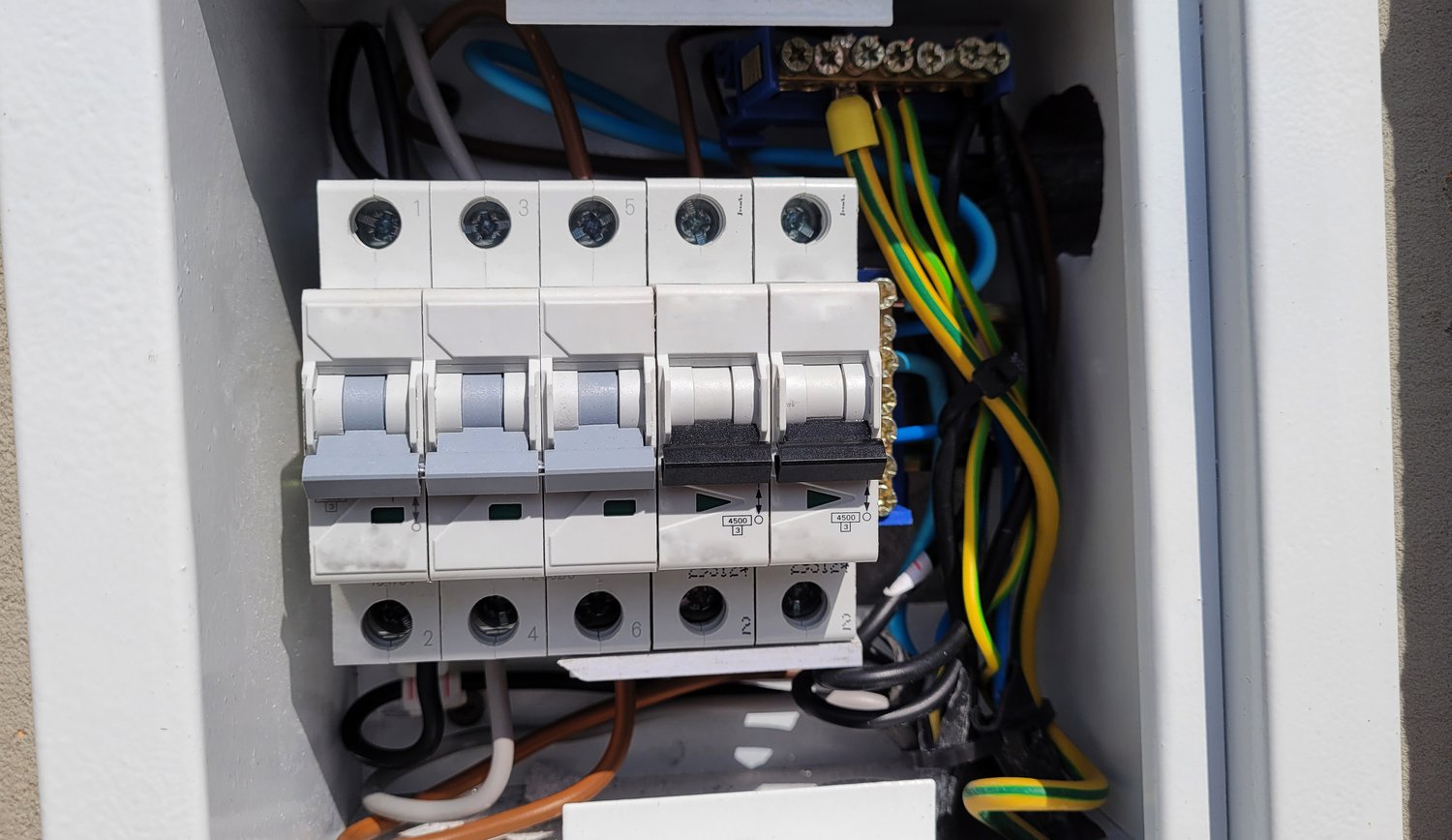

The importance of Miniature circuit breakers
Miniature circuit breakers (MCBs) are a type of modular apparatus. They protect electrical circuits from overloads and short circuits. MCBs automatically interrupt the flow of electricity when a fault is detected. This quick action prevents damage to wiring and connected devices.
Miniature circuit breakers https://onninen.pl/en/products/Electrical-apparatus/Modular-apparatus/Miniature-circuit-breakers come in various amperage ratings. Common ratings include 6A, 10A, 16A, 20A, and 32A. The choice of MCB depends on the circuit’s intended load. For example, a 16A MCB is typically used for general-purpose outlets in homes.
MCBs have several advantages over traditional fuses. They can be reset after tripping, eliminating the need for replacement. This feature saves time and money in the long run. MCBs also provide more precise and consistent protection compared to fuses. Their compact design allows for easy installation in modern distribution boards.
Exploring Residual current devices
Residual current devices (RCDs) are crucial safety components in electrical systems. They detect small leakages of current to earth, which could indicate a fault. RCDs can prevent electric shocks by quickly disconnecting the power supply. These devices are particularly important in areas with high moisture levels, such as bathrooms and kitchens.
RCDs operate by comparing the current flowing in the live and neutral conductors. If there’s a difference greater than 30mA, the device trips. Residual current devices https://onninen.pl/en/products/Electrical-apparatus/Modular-apparatus/Residual-current-devices are available in various sensitivities. The most common type for domestic use has a 30mA sensitivity.
Regular testing of RCDs is essential to ensure their proper function. Most RCDs have a test button that simulates a fault condition. It’s recommended to test RCDs every three months. If an RCD fails to trip during testing, it should be replaced immediately. Some modern RCDs feature self-testing capabilities, enhancing their reliability.
The role of Overvoltage limiters
Overvoltage limiters, also known as surge protectors, safeguard electrical equipment from voltage spikes. These devices divert excess voltage to ground, protecting sensitive electronics. Overvoltage limiters are particularly important in areas prone to lightning strikes or with unstable power supplies.
There are three types of overvoltage limiters: Type 1, Type 2, and Type 3. Type 1 devices are installed at the main distribution board, offering protection against direct lightning strikes. Type 2 limiters are used in sub-distribution boards, while Type 3 devices protect individual appliances. Overvoltage limiters https://onninen.pl/en/products/Electrical-apparatus/Modular-apparatus/Overvoltage-limiters can significantly extend the lifespan of electrical equipment.
The effectiveness of overvoltage limiters is measured in kilovolts (kV). A typical household overvoltage limiter might have a protection level of 1.5kV. Industrial applications may require higher protection levels, up to 6kV or more. It’s important to choose an overvoltage limiter that matches the specific needs of your electrical system.
Combining protection devices for comprehensive safety
For optimal electrical safety, it’s recommended to use a combination of protection devices. A typical setup might include MCBs, RCDs, and overvoltage limiters. This multi-layered approach provides protection against various electrical hazards. Some manufacturers offer combined devices, such as RCBO (Residual Current Breaker with Overcurrent protection).
When installing multiple protection devices, proper coordination is crucial. This ensures that the most appropriate device responds to a fault condition. For example, an MCB should trip before an RCD in case of an overload. Professional advice may be necessary to achieve the best coordination of protection devices.
Regular maintenance and testing of all protection devices is essential. Keep a log of test dates and results for each device. Replace any device that shows signs of wear or malfunction promptly. By maintaining your electrical protection system, you can ensure the safety and longevity of your electrical installation.
